Track 1 (Lk1) Dąbrowa Górnicza Ząbkowice after peron towards Dąbrowa Górnicza need some rework to make more wide radius curve + Superelevation to make properly Vmax 100kmh


Recommended Posts

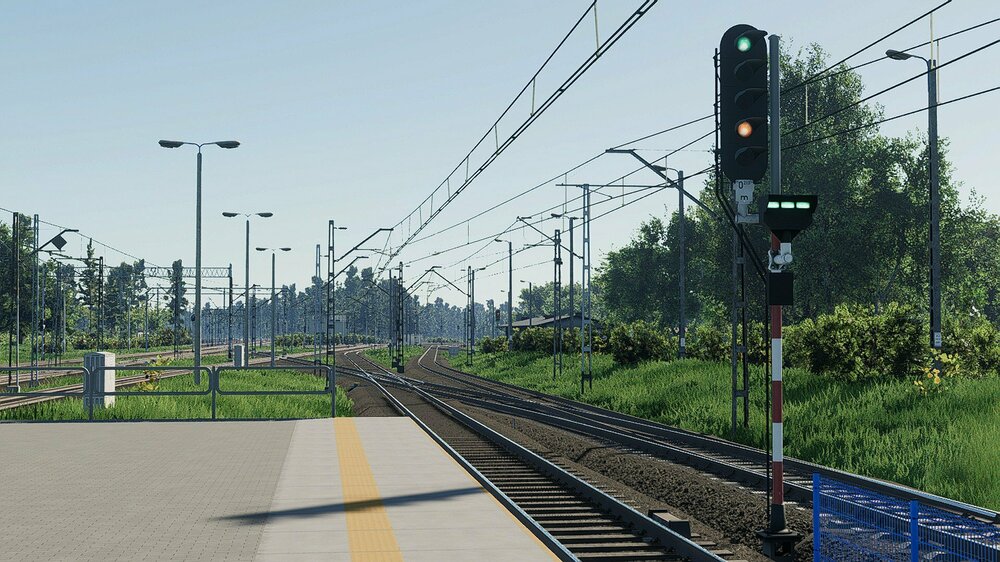

POV curve from simrail (max zoom)

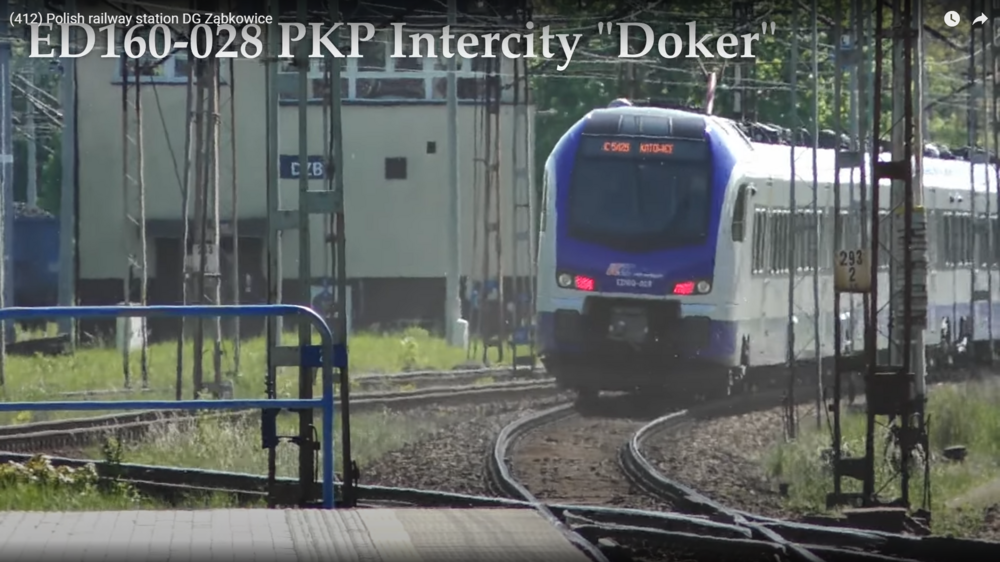

POV From real life (Source: https://youtu..be/LohlkJvfEsg?si=i-nMxWcUWQvIBrUl&t=264 - delete one dot at youtu.be)

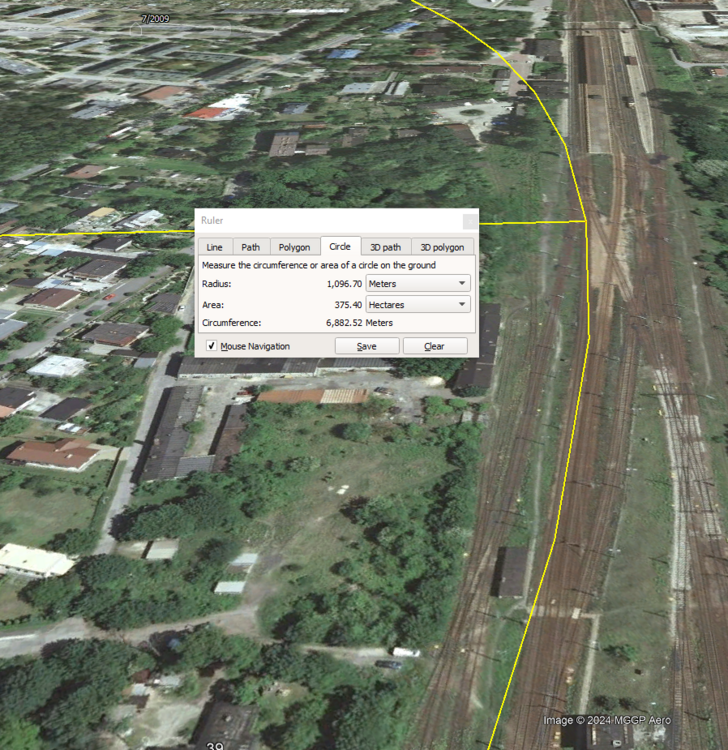

Rough Curve radius 1.1km-ish by google earth


Edited by Atheramaja
